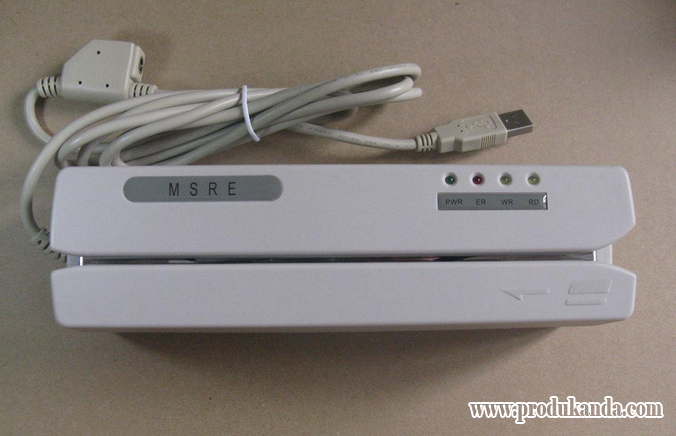

MSRE-647
Adalah magnetic card reader_writer yang dirancang kuat dan pemakaian tahan lama.
Seri ini dapat membaca dan menulis pada kartu hi/loco ISO/IEC7810, ISO/IEC7811, ISO/IEC7812, ISO/IEC7813 dan format lainnya. Alat ini dapat membaca dan menulis pada hingga 3 track dan tersedia antarmuka koneksi usb dan com serial. Alat ini banyak digunakan untuk aplikasi sistem informasi termasuk keuangan/pembayaran, point reward, militer, industri, layanan kesehatan, umum dan lainnya.
Features and Specification:
• Reading/ Writing magnetic stripe card complied with ISO 7811/ 1~ 6 formats
• Hi-co/ Lo-co configurable 1-3 Track of Data
• 300~ 4000 Oersted
• Full function command set
• ISO 7811-1/ 2/ 3/ 4/ 5 & ANSI 4.16 1983 compliant
• 5/ 6/ 7 BPC custom data format
• Two-in-one - USB or RS-232
• Manual swipe operation
• Dual status indicators - LED Lights
• Durable ABS plastic housing for heavy duty usage
• Power-on self test- Read/ Write High & Low Coercive force of magnetic stripe ( 300~ 4000Oe)
• High/ Low Coercivity encoding circuitry selectable on screen
• Program software for Windows 98/ Me/ XP
• Programming software for various read/ write performance
• Writing and verifying data on single, dual, or triple track in one swipe
• Works with DOS and Windows 95/ 98/ Me/ 2000/ NT/ XP/ Vista/ 7
Electrical:
Operating Voltage : + 24V DC ( ± 5% )
Current Consumption : 350 mA ( read) and 600 mA ( write)
Environmental:
Operating Temperature : 0 to 40 ° C
Storage Temperature : -20 to 70 ° C
Relative Humidity : 20% to 90% ( non-condensing)
Durability : Approx. + 1, 000, 000 passes
Physical dimensions : 214 x 64 x 63 mm
Weight : 1.35 kgs ( 3.0 lbs)
Recording Density : 210 BPI or 75 BPI on any track
